Small systems work great on gravity; but, when you expand, you may need a pressuring pump system. These also help if you lose your pressure when mixing nutrients and additives in a reservoir. The pump pressurizes a pressure tank and turns off. The tank then silently supplies the water with the pump not running. These also can work to transfer water from a distant tank to one closer or to automatically fill a small reservoir with a float valve.
Description

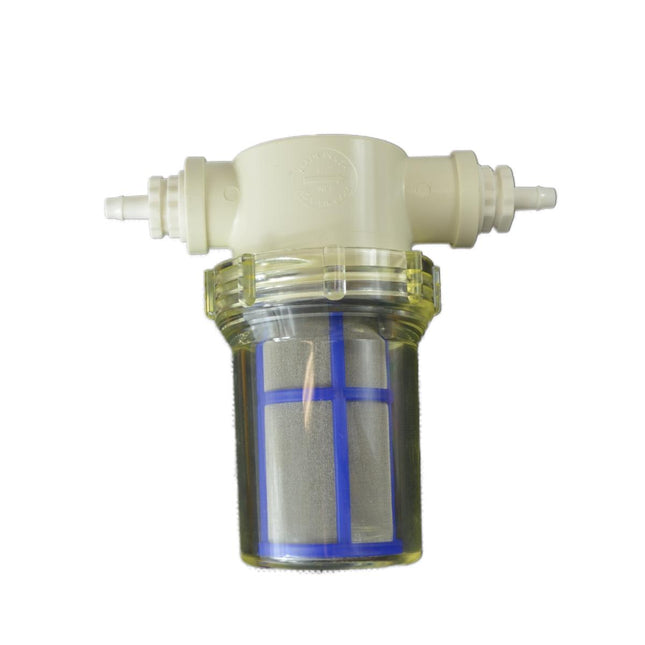

A relatively inexpensive but still high quality and easy-to-use filter. Because of the clear base, you can quickly see if it's getting dirty and you can clean it out without having to unhook your lines. Includes adapters going to 8 mm Blumat line so to install, just cut the line and push the tubing on to the adapters!
If your water isn't clean or you'd like to use thick nutrients in a reservoir, this filter will keep your Blumats safe. The screen has just the right mesh - not too big that could let clogging particles through or too small that would mean unnecessary cleaning. Clear bases make it easier to tell if they need to be cleaned but best only in dark rooms. White bases better to prevent algae build-up.
For the same price, we can also ship this with fittings for 1/2" drip, 3/8" drip, 1/2" & 3/4" slip PVC. For a little extra, we can provide a fitting for 3/4 hose thread or any combination of the above.
Specs
Blumat Filter/Strainer Specs:
Length 3 In.
Height 4 3/16 In.
177 Microns
80 Mesh
316 Stainless Steel Screen
Color Clear or White
Screen Area 6.75 Sq.-In.
Material of Construction Polypropylene
20 Max. Flow GPM
Max. Pressure 100 At 70 Deg F PSI
Description
New Blumat Mini-Strainer for Filtering In-Line
This is a small strainer that goes directly in 8mm Blumat supply line! Includes a clear bowl to make it easier to know if sediment fills up the container. Easy twist-on/twist-off clear filter bowls allows you to easily clean out the filter and re-use. Also includes quick connect fittings that gives you the ability to easily take out of line and clean.
Also available for 1/4" spaghetti tube and with quick connect/stops that give you the option to stop water flow after removing.
SHURflo 255-213 Twist-on Strainer Specifications:
Inlet: 1/2" MPT or 1/4" FPT
Outlet: 1/2" MPT or 1/4" FPT
50 mesh stainless steel screen
Transparent filter bowl
Keeps debris out of pump or water supply line
Description
A relatively inexpensive but still high quality and easy-to-use filter. Includes adapters going to 8 mm Blumat line so to install, just cut the line and push the tubing on to the adapters!
If your water isn't clean or you'd like to use thick nutrients in a reservoir, this filter will keep your Blumats safe. The screen has just the right mesh - not too big that could let clogging particles through or too small that would mean unnecessary cleaning. Clear bases make it easier to tell if they need to be cleaned but best only in dark rooms. White bases better to prevent algae build-up.
For the same price, we can also ship this with fittings for 1/2" drip, 3/8" drip, 1/2" & 3/4" slip PVC. For a little extra, we can provide a fitting for 3/4 hose thread or any combination of the above.
Description
3/4" male hose thread x 3/4" male hose thread. This filter will remove physical particulates and debris prior to entering your irrigation line. Great for drip emitters.
Description
This is the pump we use in our Blumat Pressure systems. The 8005-233-236 ShurFlo Pressure pump is ideal for a Blumat irrigation system due to being rated for continuous use and its built in pressure switch. If you'd like to do your own version of this system, we highly recommend the pump model - we've tested quite a few and this one is the most dependable, quite, and has ideal pressure and flow specs. It's more expensive than other Shurflo models but with both a built in pressure switch and internal bypass, we haven't seen anything like it yet.
This is a new and redesigned fresh water pump created with a unique one-piece diaphragm and internal by-pass, assuring long life and top performance in all systems. Constructed for high flow demand, low noise and no rapid cycling. SHURflo's quality reputation has been built on the reliability and dependability. The Revolution fresh water automatic demand pump is super quiet, thermally protected and can run dry without damage. Dimensions: 4.90 inch x 8.10 inch x 4.30 inch; Flow Rate 1.4 GPM. 115 VAC.
Description
New Blumat Mini-Strainer for Filtering In-Line This is a small strainer that goes directly in 8mm Blumat supply line! Also has a quick connect 8mm on/off valve to allow you to manually turn off the water when you need to clean the filter. Includes a clear bowl to make it easier to know if sediment fills up the container. Easy twist-on/twist-off clear filter bowls allows you to easily clean out the filter and re-use. Also includes quick connect fittings that gives you the ability to easily take out of line and clean. Also available for 1/4" spaghetti tube and with quick connect/stops that give you the option to stop water flow after removing. SHURflo 255-213 Twist-on Strainer Specifications: Inlet: 1/2" MPT or 1/4" FPT Outlet: 1/2" MPT or 1/4" FPT 50 mesh stainless steel screen Transparent filter bowl Keeps debris out of pump or water supply line
Description
This 21 Oz. OEM Accumulator Tank, includes a mounting bracket and has 1/2" female ports (the RV version has male threads). You can get by without using this is a pressure system but if you have it, the system will be quieter, run more smoothly, and the pump won't turn on as often.
Materials: nylon housing, butyl diaphragm. Ports 1/2" NPT female. Dimensions 3.75" diameter x 8.75" long. Approvals NSF listed Max. Working Pressure 125 psi
Guide to Pressure Accumulator Tanks
Description
New Blumat Proffesional Mini-Strainer for Filtering In-Line This is a small strainer that goes directly in 8mm Blumat supply line! The professional version features an industrial standard quick connect with water flow stop technology, meaning once disconnected, the water flow will stop. This is great for removing the filter from inline, while stopping the water from leaving the system, allowing you to clean and replace the filter. Includes a clear bowl to make it easier to know if sediment fills up the container. Easy twist-on/twist-off clear filter bowls allows you to easily clean out the filter and re-use. Also includes quick connect fittings that gives you the ability to easily take out of line and clean. Also available for 1/4" spaghetti tube and with quick connect/stops that give you the option to stop water flow after removing. SHURflo 255-213 Twist-on Strainer Specifications: Inlet: 1/2" MPT or 1/4" FPT Outlet: 1/2" MPT or 1/4" FPT 50 mesh stainless steel screen Transparent filter bowl Keeps debris out of pump or water supply line
